XML Map Properties

6. Try This: Find the Map Properties

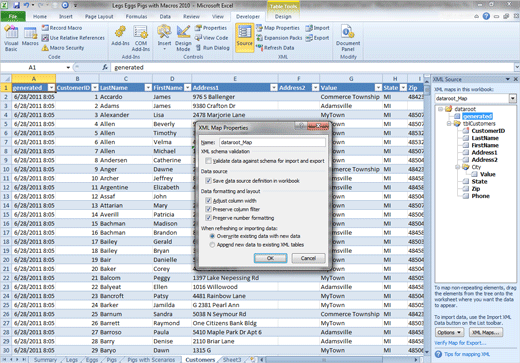

Go to Developer ->XML.

Click on Map Properties.

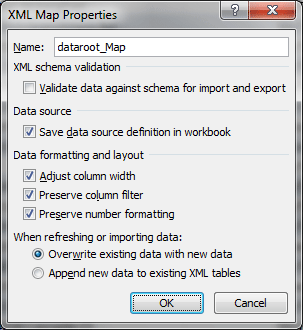

What Do You See? The XML Map Properties include the following:

Name

XML schema validation

Data Source: this option lets you Save the data source definition in the workbook.

Data formatting and layout



What Else Do You See? The XML Map Properties determines what happens when the data is refreshed or imported.



There are two very different choices:

Overwrite the existing data with new data

Append new data to an existing XML table



The default is to overwrite (replace) the data when you refresh or import.



So far so good. Click OK!

Developer ->XML->Map Properties

Exam 77-888: Microsoft Excel Expert 2010

1. Sharing and Maintaining Workbooks

1.1. Apply workbook settings, properties, and data options: XML Map Properties
